**(B) The Force for a Hollow Sphere**

**1. Preliminaries for Calculation**

We can get the force that a hollow sphere exerts upon an external
test-mass without any calculus at all. All we need is Archimedes’
Theorem, the Pythagorean Theorem, and our formula for a uniform ring.
Let’s see how easy it is:

- For convenience we replace the
**Gm**_{A}**m**_{B}part of the gravitational formulas with a constant,**K**. Newton’s formula would now just be**K / d**^{2}. - The radius
**R**of the sphere**1**and so all distances will now be in units of**R**. - The centre-to-centre distance between test-mass and sphere is
**D**, which we leave as a variable but is fixed for any given example. Our formula will be in terms of**D**, with**D**in units of**R**.

The
basic idea is simple: We divide the hollow sphere into rings and use
our ring formula to get the force from each ring. Then we add them
up.

However, two problems pop up:

- How do we figure out the
*mass*for each ring? - How do we figure out the
*size and distance*for each ring?

**2. Archimedes’ Theorem**

It
turns out the mass problem solves

*itself*, if we know Archimedes’ Theorem! Take a sphere and a cylinder with the same diameter. Let two parallel planes cut through them both. Archimedes showed that the surface area of the sections between the planes is the same! But as long as the spacing is fixed, the area between will be the same anywhere on the cylinder, and so the area stays constant for the sphere as well!
That is,

*rings of equal**height*, they will automatically have the same area, and mass too. This may seem spooky, but the explanation is simple enough: As the rings’ radius decreases, the tilt of their surface*increases*just enough to keep the area constant. If the mass is equally spread over the surface, then the area is proportional to mass.**3. Defining the Variables**

If we start in the middle and work out toward the edges taking the
rings in pairs, each pair will have the same radius, saving some
effort.

**Rin****g**

__: Dividing the sphere into__

**Mass****2N**rings of equal width ensures that each ring has the same mass. ( via Archimedes’ theorem ) The mass of the whole sphere,

**m**

_{B}=

**1**. This makes the mass of each ring,

**m**

_{i}

**= m**

_{B }

**/ 2N = 1 / 2N.**

( The

**i**subscript identifies each ring for our loop. ) It is true that the curved ‘sphere-slices’ aren’t*really*rings of negligible thickness, but we can make them as close as we like by increasing the number of slices,**2N**.__: However, the forces for near and far ring are different, so we have to do each separately. We place the sphere at the origin (0,0), slice the sphere vertically, and use the x-axis for most distances. If__

**Coordinates****i**is our counter, and

**2N**is the number of rings and

**R = 1**( the sphere radius ), then we sweep

**i**from

**– N**to

**+ N**, and (

**i / N**)

**is just the x-coordinate of each ring, which goes from**

**-1**to

**+1**.

**Rin****g**

__: Since the test-mass distance will normally be given as centre-to-centre,__

**Distance**^{5}we define ring distance in those terms.

**d**

_{near}

**= D - i / N**

**d**

_{far}

**= D + i / N**

Conveniently, our choice of origin and using – and + values for

**i**handles the signs automatically, so the form**D - i / N**is good for*both*near and far rings.

**Rin****g**

__: ( via Pythagorean theorem )__

**Radius**
When setting up our variables, we might be inclined to define the
ring radius,

**r**_{i}in terms of the angle**f**directly. For instance,**r**_{i }= sin**f**, and**f**= cos^{-1 }(**i / N**).
Rather than insert

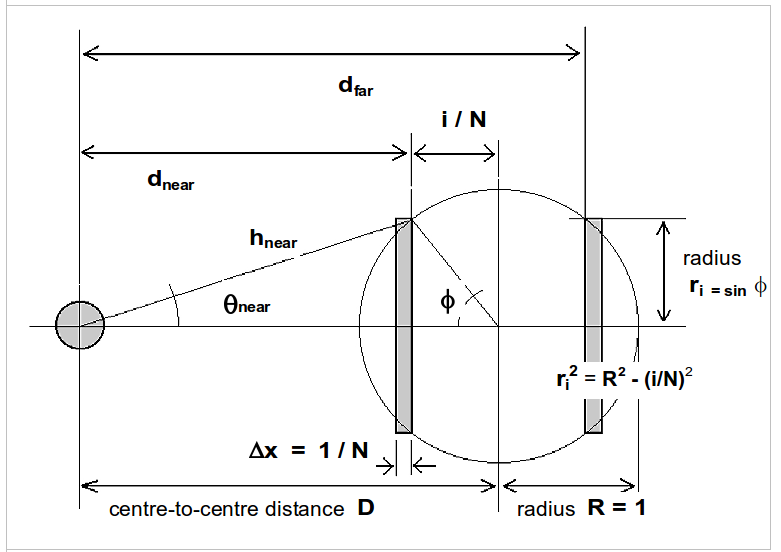

**sin (cos**^{-1 }**( i / N ) )**into our formula, we can get**r**_{i}more simply and directly: Make a standard right triangle around angle**f******, by using the sphere radius**R = 1**as one side and dropping a vertical to the X-axis where the ring will be. ( see diagram. ) The ring radius is then just the y-coordinate. We solve for**y**using the Pythagorean theorem. :**(****y**^{2}**= h**^{2}**- x**^{2 }…h = hypotenuse = 1 )**r**

_{i }

^{2}

**=**

**R**

^{2}- (

**i / N**)

^{2}=

**1 -**(

**i / N**)

^{2}( we won’t need

**r**

_{i}itself, just

**r**

_{i }

^{2 }…)

So we only use the perspective of the angle

**f******to determine**r**_{i }^{2}in terms of the radius of the sphere. But after that, we are done with it*. For the gravity formula we want the perspective of the angle***q**. But again we can avoid all the trigonometry and angle-juggling by simply working with the distances directly anyway.

**Rin****g**

__:__

**Formula**
We also have a choice of forms for the gravity formula for a ring,
(see above) but the following version is convenient, substituting in
for

**h**via Pythagorean theorem :Substituting in

**d**and

**r**

^{2 }and simplifying the denominator gives the final formula for the hollow sphere: ( note: exponent on

**r**is already handled )

For any given sphere and
test-mass at a fixed position, the only variable is

**i**. In fact, the same formula is valid for both inside and outside the hollow sphere, if we allow the (**-+**) sign to represent the direction of the force along the axis. Good results can be obtained with**N > 1000**. While this is not practical by hand, it is trivial to write a small computer program to loop the sum and graph the formula. The graph will approximate Newton’s claim regarding the field for*a hollow sphere.*
We now have a pretty frightening looking formula. But all this is really saying is that we have to integrate our summation formula to make it exact.

Integrating the formula gives us the following simpler formula:

Integrating the formula gives us the following simpler formula:

(We show how we integrated this formula below.) And what is this

formula? It is just Newton's original Inverse Square formula with a toggle factor (Absolute Value function) that turns off the force when the test-particle is inside the sphere.

Is it exact? Mathematically yes. Except as always, the formula has discontinuities and is meaningless when the denominators are zero. (the border of the sphere surface). Does it accurately reflect the physical reality inside the sphere?

formula? It is just Newton's original Inverse Square formula with a toggle factor (Absolute Value function) that turns off the force when the test-particle is inside the sphere.

Is it exact? Mathematically yes. Except as always, the formula has discontinuities and is meaningless when the denominators are zero. (the border of the sphere surface). Does it accurately reflect the physical reality inside the sphere?

**4. Integrated Version for Hollow Sphere**

The Integral form is of course much faster, and more accurate,
provided we accept the assumptions which went into it. ( These will
be discussed later. )

The
steps for the integration have been skipped. Those who can do the
calculus won’t need any help to check the result for themselves.
The final integral performs as expected by standard theory, so no
controversy with Newton can be found (or resolved) along those lines.

**Plotting the Force for the Hollow Sphere**

Note the finite limits approaching the vertical asymptote ( which is present ) at the surface, shown on the graph. These are two clues that the mathematics is not a perfect representation of the physical situation.*
